Helix Grades
N Scale Small Helix
Single Track: 2.35%
Double Track: 2.25% and 2.46%
N Scale Large Helix
Single Track: 1.99%
Double Track: 1.92% and 2.07%
HO Scale Single Track: 2.31%
HO Scale Double Track: 2.11% and 2.31%
Overall Dimensions
Radius Specifications

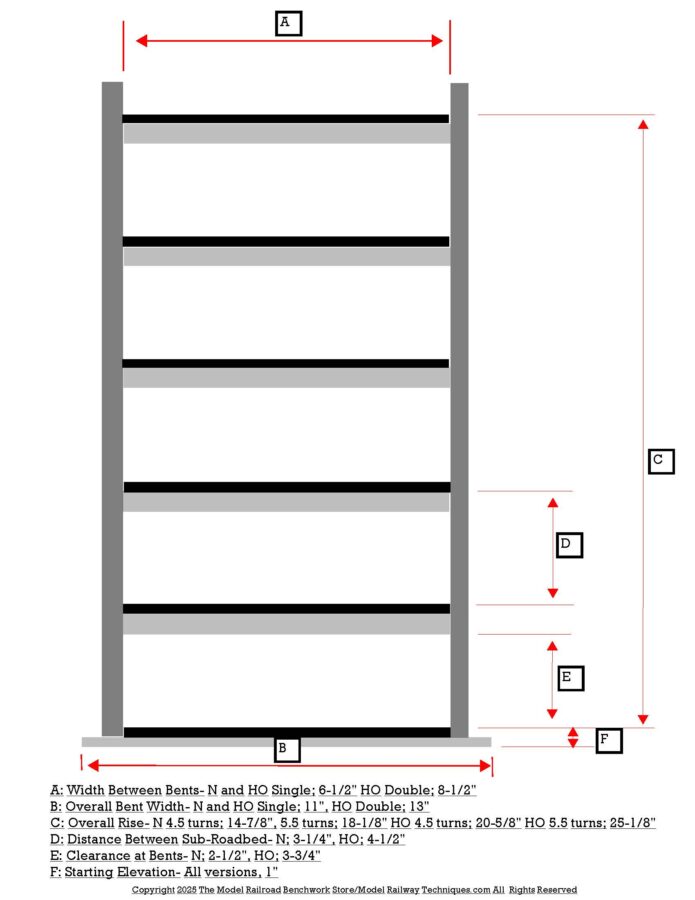

Bent Dimensions and Minimum Clearances
