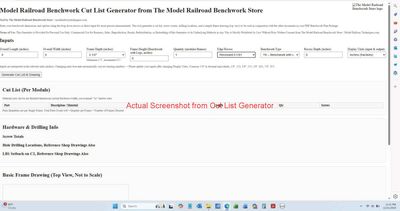

PRO Digital PDF Model Railroad Benchwork Plans plus Model Railroad Benchwork Cut List Generator

Build your benchwork to the same proven design standards as our Complete Table and Benchwork Kits—without buying a prefabricated kit.

PRO Digital PDF Benchwork Plan Packages™ combine our proprietary, Model Railroad Benchwork Cut List Generator™ with a complete set of shop drawings so you can fabricate parts accurately and assemble with confidence. Measurements are tailored to your selected table size and dimensioned to within 1/16" for proper fit and performance.

What you get (PRO Package)

✅ Unlimited-use Model Railroad Benchwork Cut List Generator (create many size/configuration combinations over time, works in both inches and millimeters)

✅ 15 detailed shop drawing pages with fillable areas for length and width; constant values are provided (both inches and millimeters)
• Assembly Drawings (single pieces and multi-part assemblies)
• Part Drawings (each individual component clearly identified and dimensioned)
✅ Master cut list with part IDs, lengths, quantities, and required screw counts
✅ Photos of real parts and completed assemblies to eliminate guesswork
✅ Illustrated assembly instructions for building your benchwork after parts are fabricated
✅ Superior leg design based on our Complete Table Kits, which utilize L-girder legs with two diagonal braces per leg for stability and support; Our inboard leg placement design reduces overall spans and also prevents accidental kicking of the legs common with designs that place legs in the corners or along the edges of your benchwork.

Who this is for

• Model Railroaders who want professional-level plans with accurate drilling and assembly references
• Anyone building a larger or more complex personal benchwork system and wants a reusable design tool
• Smaller Model Railroaders who want a buy once, reuse forever solution for future expansion

Tools & skill level

Fabrication can be accomplished using common power hand tools such as a circular saw, drill, and palm sander.

For increased accuracy and faster production, we recommend:

• Table saw (ripping plywood Sides/Ends)
• Miter saw (repeatable crosscuts)
• Drill press (more precise drilling)
• Router (quick edge rounding)

A general knowledge of woodworking is required; alternatively, you may provide the plans to an experienced friend or a professional woodworking shop for fabrication.

Material recommendations

Material selection is at the discretion of the user. For best results we recommend the following guidelines:

• 3/4" (19mm) cabinet-grade plywood (birch or maple) for Sides, Ends, and Leg Assemblies to maintain straightness and stability
• Quality, kiln-dried, knot-free dimensional lumber (pine/whitewood) for remaining components
• Hardwood is discouraged for end-fastening, as it may split

• FAQ
• Q: Are the dimensions generic or custom?
  A: Custom. The Model Railroad Benchwork Cut List Generator will produce accurately dimensioned parts in both inches and millimeters, hole spacing layouts based on user inputs of Length, Width, Frame Depth, Overall Frame Height, Recessed Option, and Benchwork Only or Legs Included. Accuracy is to 1/16". You then transfer those measurements to the Shop Drawings where noted for fabricating the Parts and Assemblies. Dimensions that remain constant regardless of benchwork size are already on each shop drawing for you.
• Q: Is this just a PDF?
  A: No—each package includes the drawing set and an unlimited-use of the Model Railroad Benchwork Cut List Generator so you can create many design combinations over time utilizing the same fill in the blanks PDF Shop Drawings
• Q: Do I need special tools?
  A: No. Common power hand tools can work. However, a table saw and drill press are recommended for maximum accuracy.
• Q: Can a woodworking shop build this from the plans?
  A: Yes. The package is designed so a competent woodworker or shop can fabricate directly from the drawings you provide and cut list.
• Q: How do I receive my PRO Digital PDF Model Railroad Benchwork Plans and Model Railroad Benchwork Cut List Generator?
  A; Once purchased, you’ll receive an instant digital download link. You can open the files on your computer, tablet, or smartphone — or print them out for use in your workshop. The Model Railroad Benchwork Cut List Generator runs in a browser window. No waiting, no shipping delays — start building right away.


• Q: Can I share the PRO Digital PDF Model Railroad Benchwork Plans and Model Railroad Benchwork Cut List Generator?
• A: The plans are for personal use only, and you may only provide them to a shop or friend for the purpose of fabricating the parts for you. Any other distribution is considered a violation of our Digital Copyright and Usage Notice and may result in legal action.
